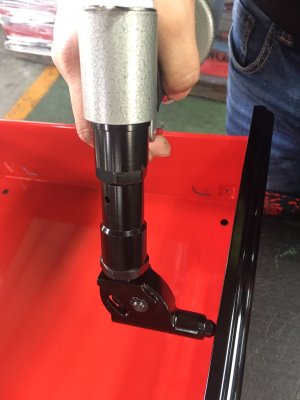

• 5/32" ANGLE AIR HYDRAULIC RIVETER

MODEL : AHR-101A

Product Specifications
  • Rotatable 90 degrees head for maximum accessibility
  • Rivet capacity: for setting blind rivets up to 5/32” (4.0mm)
  • Nosepieces: 2.4mm, 3.2mm, 4.0mm
  • Capacity: 2.4mm, 3.2mm, 4.0mm in alu. & steel rivets
  • Traction power: 2680lbs (1219kgs)
  • Tool stroke: 12mm
  •  Working pressure: 60~100PSI (depend on rivet material)
  • Air inlet: 1/4”
  • Avg. Air Consumption: 3.5CFM
  • W/ 3 jaws
  • Weight: 1.8kgs

Packing: 6pcs/14kgs/15kgs/2.1’
