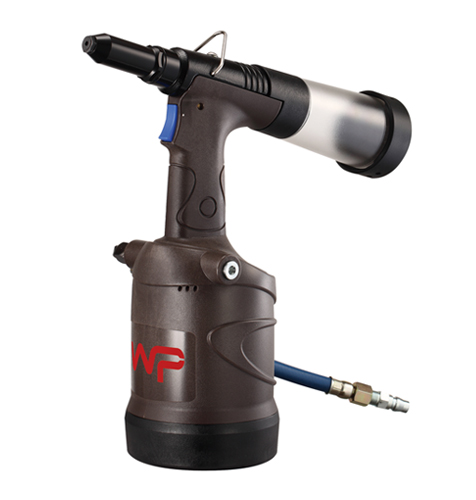

MODEL : AHR-03P
Product Specifications
- Vacuum type
- W/ reactionless & shock-less design
- Rivet capacity: up to 1/4" (6.4mm)
- Work capacity: up to 6.4mm in al. & steel
- up to 4.8mm in stainless
- Traction power: 2895lbs (1316kgs)
- Stroke length: 26mm
- Nosepieces: 4.0-4.8-6.4mm
- Working pressure: 73 - 100PSI
- Air consumption: 4.3 liter/per shoot
- Cycle time: 1.2 second / per shoot
- Noise: < 75 dBA
- Vibration: < 2.5 m/s2
- Net weight: 5.06lbs (2.3kgs)
Packing: 3pcs/8.3kgs/9.3kgs/2.1’
