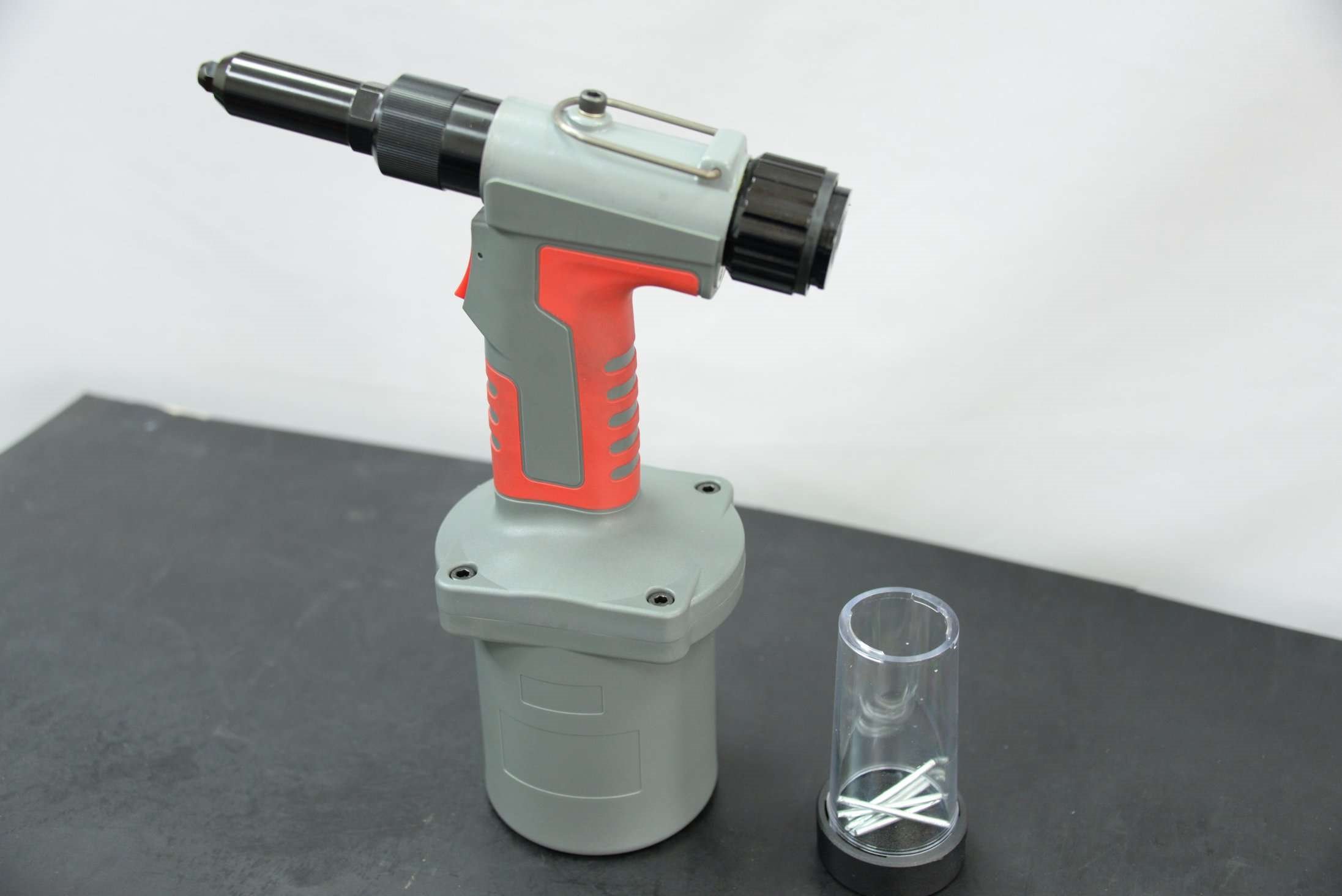

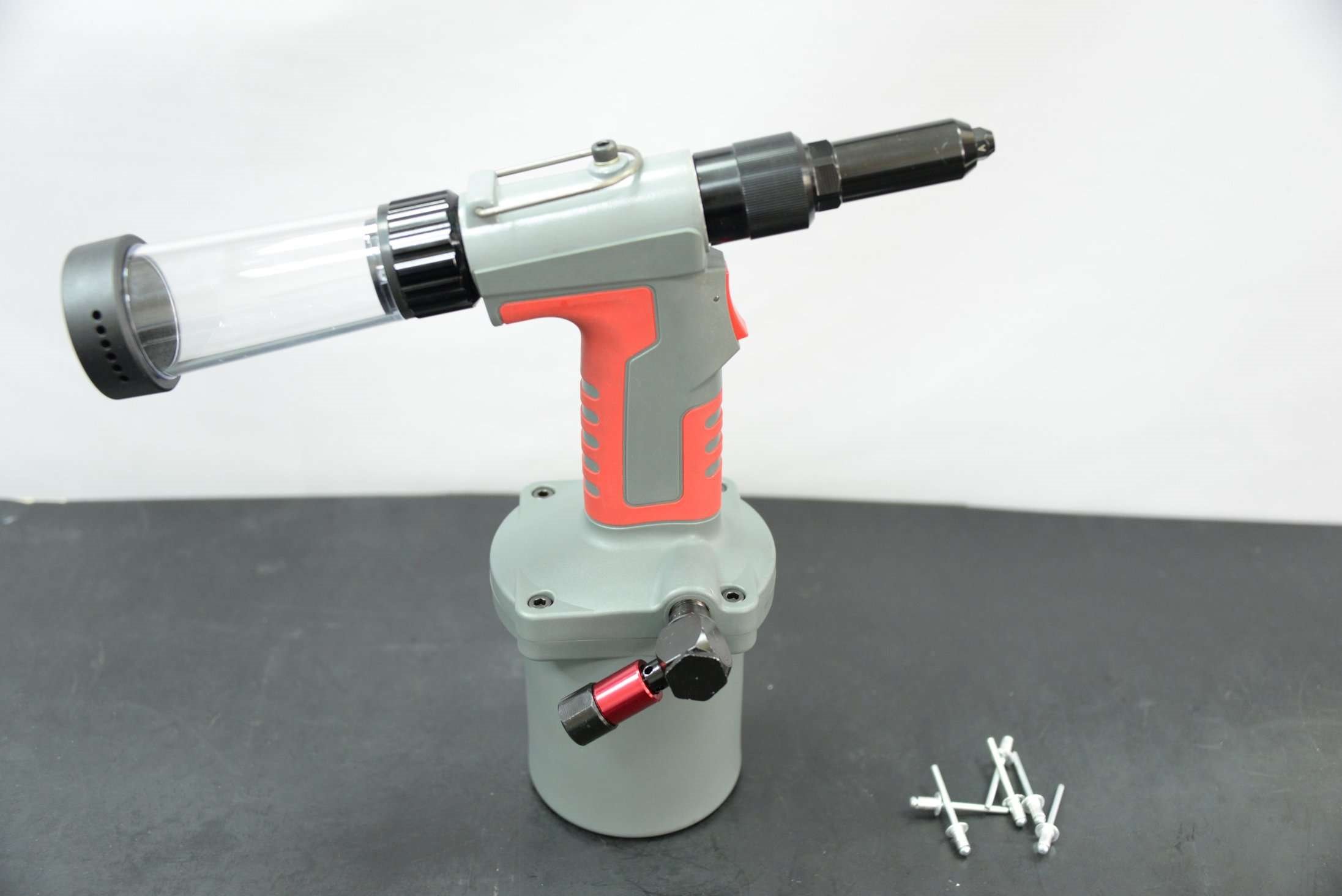

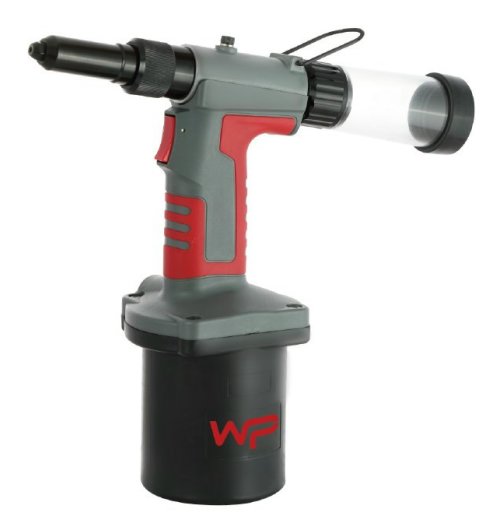

• 3/16" AIR HYDRAULIC RIVETER-COMPOSITE & VACUUM

MODEL : AHR-101PV

Product Specifications
  • High speed, increase job efficiency
  • Lower noise & backlash
  • Lower air consumption
  • Quick change jaw assembly without tools
  • Rivet capacity: for setting blind rivets up to 3/16” (4.8mm)
  • Nosepieces: 2.4mm, 3.2mm, 4.0mm, 4.8mm
  • Max Capacity: up to 4.8mm stainless rivets
  • Traction power: 2693lbs (1221kgs)
  • Tool stroke: 18mm
  • Working pressure: 60~100PSI (depend on rivet material)
  • Air inlet: 1/4”
  • Avg. Air Consumption: 1.96CFM
  • W/ 3 jaws
  • W/ air switch
  • Weight: 1.52kgs

Packing: 6pcs/11kgs/12kgs/2.1’
