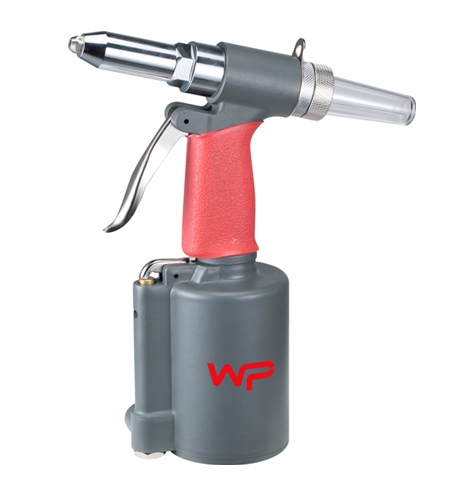

• 3/16" AIR HYDRAULIC RIVETER-STANDARD

MODEL : AHR-101

Product Specifications
  • Rivet capacity: up to 3/16" (4.8mm)
  • Traction power: 2680lbs (1219kgs)
  • Stroke length: 14mm
  • Nosepieces: 2.4mm, 3.2mm, 4.0mm, 4.8mm
  • Acceptable rivet material: aluminum/steel/stainless
  • Working pressure: 60~100PSI
  • Weight: 3.3lbs (1.5kgs)

Packing: 10pcs/18kgs/19kgs/1.85'

Optional: 16mm stroke length (item No. AHR-101L)
