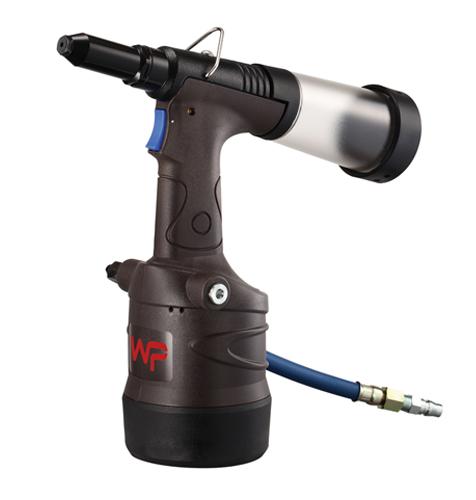

• 3/16” COMPOSITE AIR HYDRAULIC RIVETER-INDUSTRIAL

MODEL : AHR-02P

Product Specifications
  • Vacuum type
  • W/ reactionless & shock-less design
  • Rivet capacity: up to 3/16" (4.8mm)
  • Work capacity:up to 4.8mm in al. & steel
  •  up to 4.0mm in stainless
  • Traction power: 2097lbs (953kgs)
  • Stroke length: 17mm
  • Nosepieces: 3.2-4.0-4.8mm
  • Working pressure: 73 - 100PSI
  • Air consumption: 2.1 liter/per shoot
  • Cycle time: 0.8 second / per shoot
  • Noise: < 75 dBA
  • Net weight: 4.62lbs (2.1kgs)
Packing: 3pcs/7.4kgs/8.4kgs/2.1’
