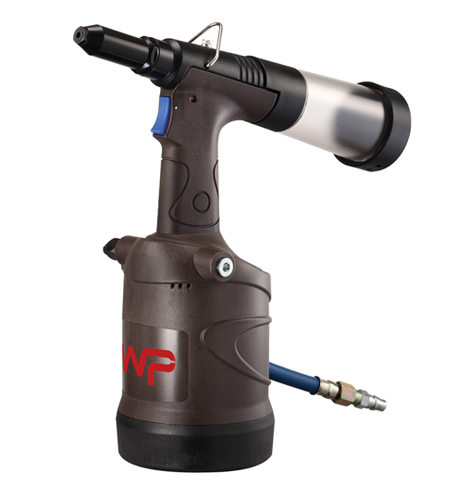

• 1/4” COMPOSITE AIR HYDRAULIC RIVETER-INDUSTRIAL

MODEL : AHR-04P

Product Specifications
  • Vacuum type
  • W/ reactionless & shock-less design
  • Rivet capacity: up to 1/4" (6.4mm)
  • Work capacity: up to 6.4mm in stainless
  • Traction power: 4194lbs (1906kgs)
  • Stroke length: 17mm
  • Nosepieces: 4.0-4.8-6.4mm
  • Working pressure: 73 - 100PSI
  • Air consumption: 4.3 liter/per shoot
  • Cycle time: 1.2 second / per shoot
  • Noise: < 75 dBA
  • Vibration: < 2.5 m/s2
  • Net weight: 5.06lbs (2.3kgs)
Packing: 3pcs/8.4kgs/9.4kgs/2.1’
